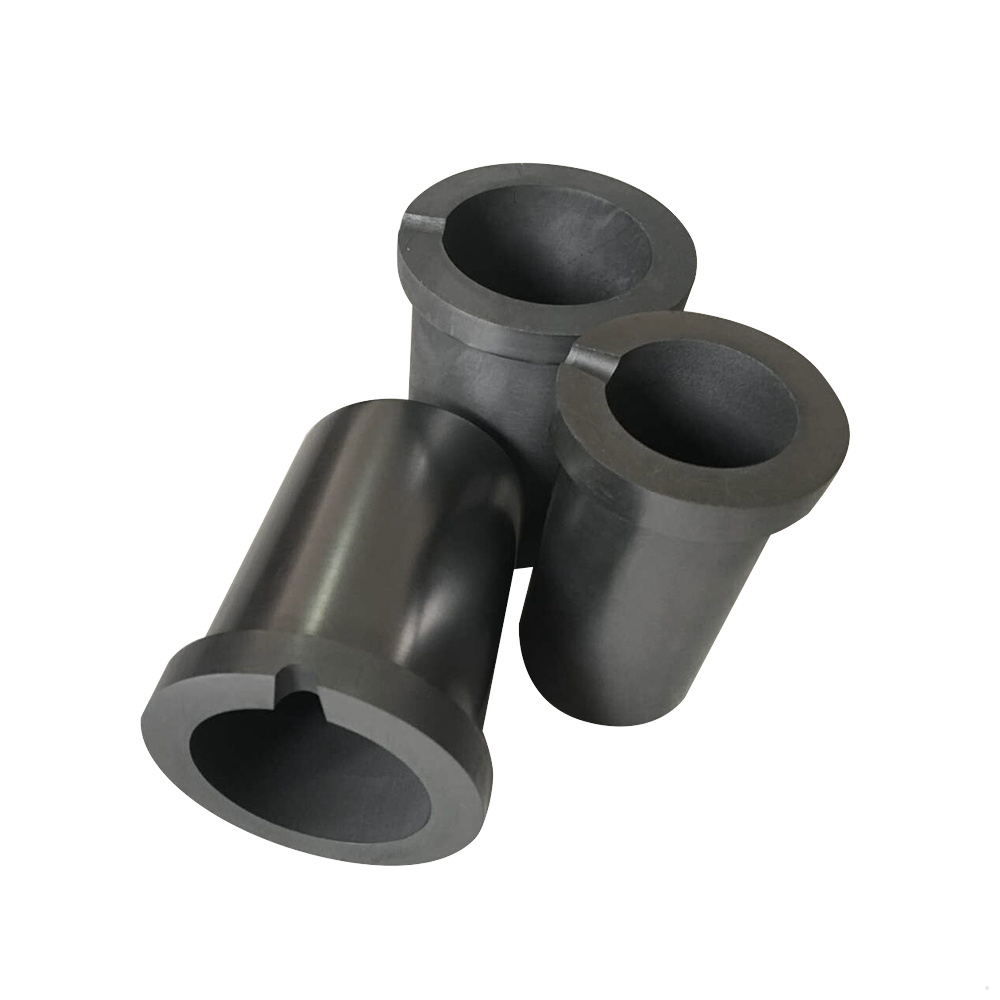

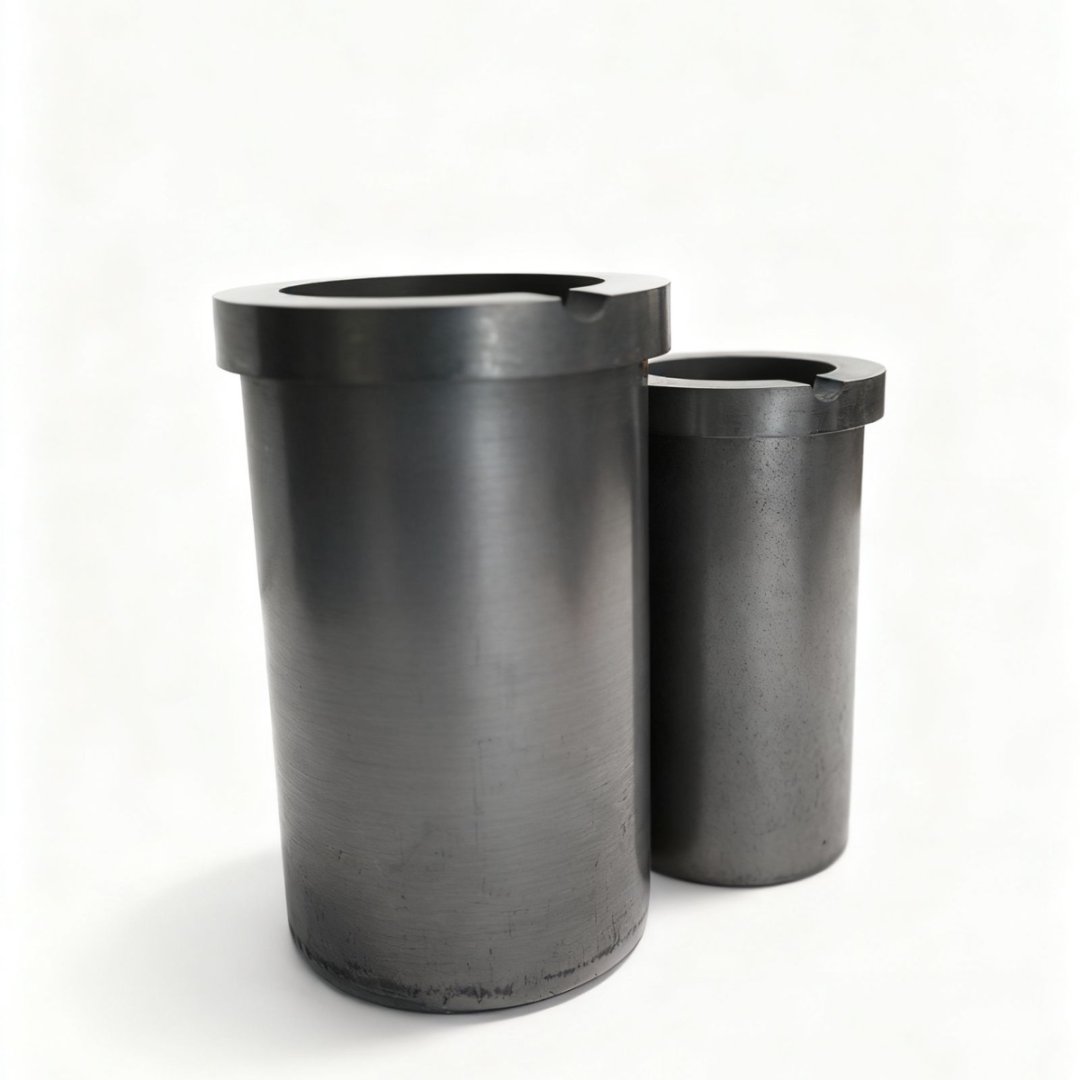

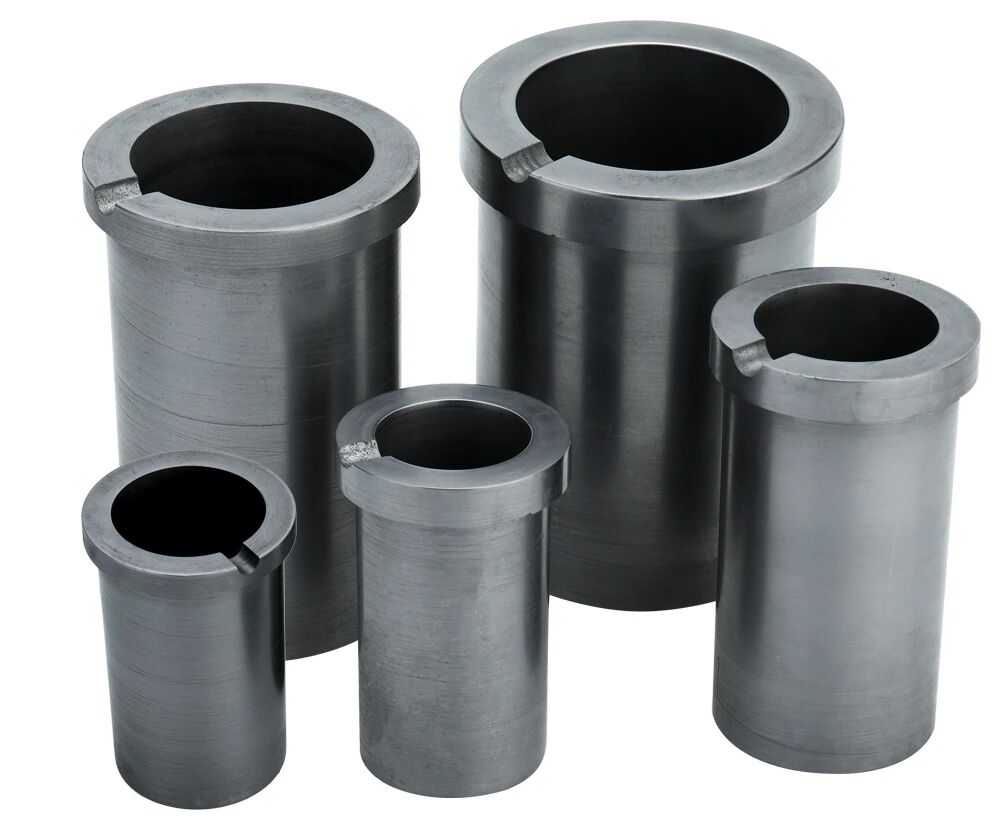

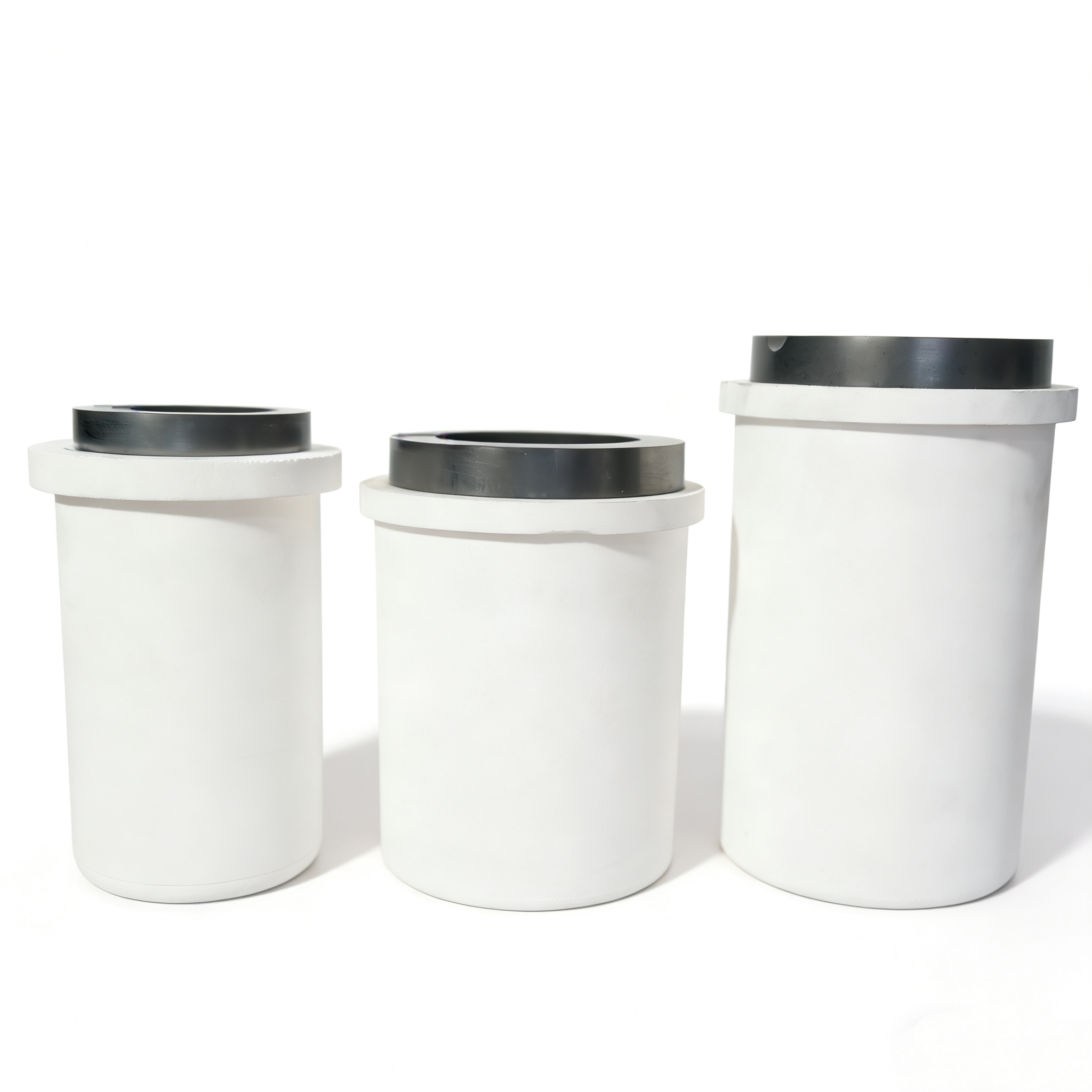

Graphite crucible with quartz crucible

Graphite crucible is made from our high quality graphite block and widely used in all kinds of furnace for melting such as jewelry, gold, silver, copper, brass, iron, aluminum, zinc, lead and so on. Based on working environment, we could supply the molded graphite, isostatic graphite, medium grain graphite, and some imported graphite materials.


Description

 Do you know how many kinds of graphite crucibles we have?

1. According to your application. For example if you need crucible to melt jewelry, gold, silver and other precious metal. We will suggest the high purity graphite for you, because it does not have impurity and will not influence your precious metal.

2. According to your working temperature. For example, if your working temperature is within 500 degree, the ordinary graphite with density 1.75g/cm3 is OK. If your working temperature is more than 2000 degree, I think we must consideration the isostatic graphite with the high density.


Size Chart:


ItemCapacityDimension(mm)
Φ1Φ2Φ3H
Graphite crucible1kg58354788
Quartz crucible1kg70505888
Graphite crucible2kg654557110
Quartz crucible2kg846170111
Graphite crucible2.5kg654457126
Quartz crucible2.5kg846171127
Graphite crucible3kg856075105
Quartz crucible3kg1008090102
Graphite crucible4kg856075130
Quartz crucible4kg1007988134
Graphite crucible5kg1006988130
Quartz crucible5kg1189198135
Graphite crucible5.5kg1057190150
Quartz crucible5.5kg12095108154
Graphite crucible6kg11579100180
Quartz crucible6kg133107121181
Graphite crucible8kg12085110180
Quartz crucible8kg145114133185
Graphite crucible12kg15096126198
Quartz crucible12kg165130180199
Graphite crucible16kg160110138220
Quartz crucible16kg172144159210
