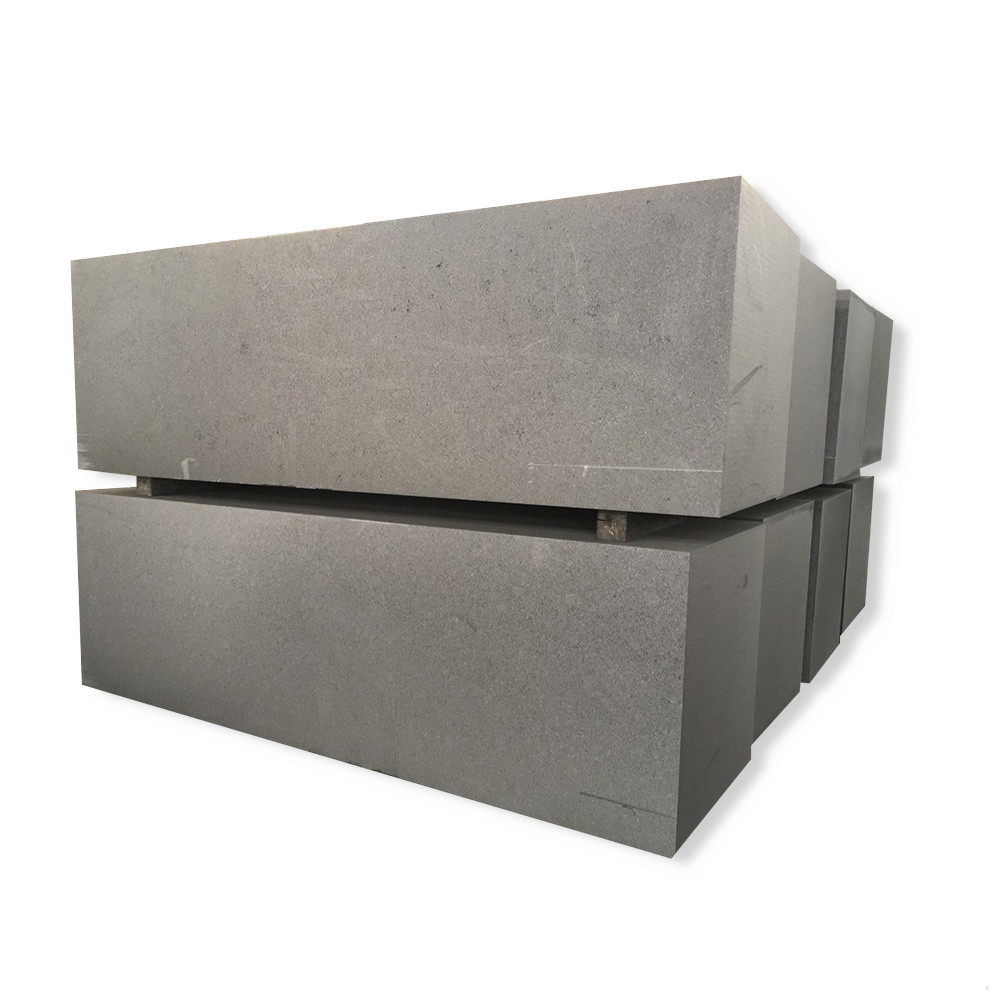

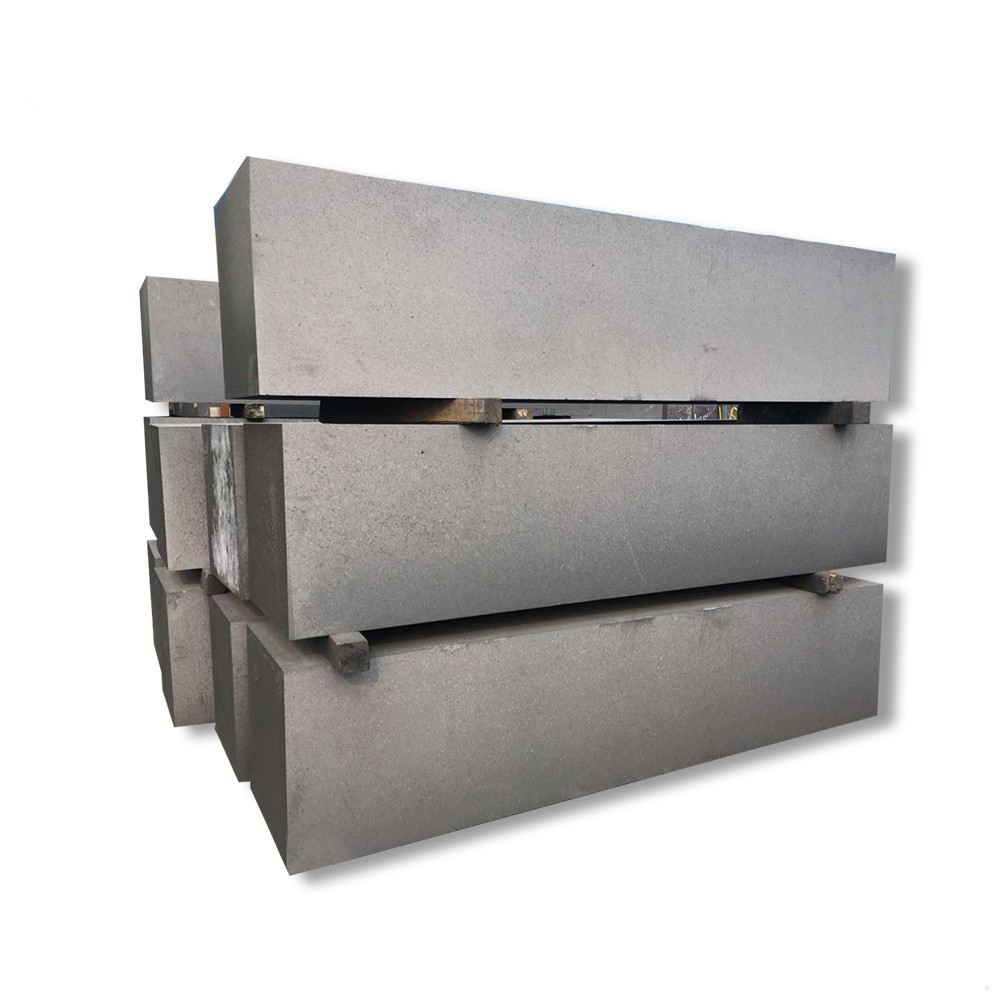

Graphite block for heat exchanger

Our Graphite Blocks, made from excellent petroleum coke, are widely used in metallurgy, machinery, electronics and chemical industry, etc. Various Graphite Blocks with qualified materials are available in our factory. We could supply medium-grain graphite, molded graphite, isostatic graphite, kinds of domestic and imported graphite, and so on. Typical sizes as follows: 400x400x1800mm; 500x500x1950mm, 500x330x1950mm, 500x430x1950mm, 520x350x2150mm, 630x630x2200mm, 600x500x2200mm, 820x340x2100mm, 520x350x2600mm, 1100x11000x350mm, etc.

Description

Physical and chemical index:

Trademark	Bull density	Electric resistivity	Flexural strength	Compressive strength	Ash
Trademark	g/cm³	μΩ·m	Mpa	Mpa	%
OZ-2	≥1.60	≤11.5	≥6.0	≥18.0	≤0.3
OZ-2-1	≥1.70	≤8.5	≥9.0	≥30.0	≤0.3
OZ-8	≥1.70	≤8.5	≥10.0	≥24.0	≤0.3
OZ-8-2	≥1.72	≤8.0	≥12.0	≥31.0	≤0.3
OZ-8-3	≥1.72	≤9.0	≥14.5	≥32.0	≤0.2
OZ-G-1	≥1.68	≤14	≥25.0	≥50.0	≤0.15
OZ-G-2	≥1.78	≤14	≥40.0	≥60.0	≤0.1
OZ-G-3	≥1.85	≤13	≥45.0	≥65.0	≤0.05
OZ-D1	1.80~1.85	≤15	≥40.0	≥85.0	≤0.03

Do you know our material of the graphite block?

All of our graphite block is made from the superior petroleum coke, which meets the state stands YB/T408-200. The better raw material will produce the better products.

Do you know the use of our graphite block?

The graphite block can use for making graphite plate, graphite rod, graphite tube, graphite crucible, graphite rotor and shaft and so on. It widely used in electron industry, chemical industry, mechanical industry, aviation industry, manufacturing industry, metallurgic industry and so on, such as anode, cathode, bipolar plate, vacuum furnace, water treatment, hydrogen fuel cell, electrode, casting, glass factory, heat conduction, lubricant, mold industry, vacuum pump.
