Graphite electrode, mainly from the domestic petroleum coke and imported needle coke, is widely used in electric arc furnace,ladle furnace, submerged arc electric furnace for theproduction of alloy steel, metal and nonmetallic materials.

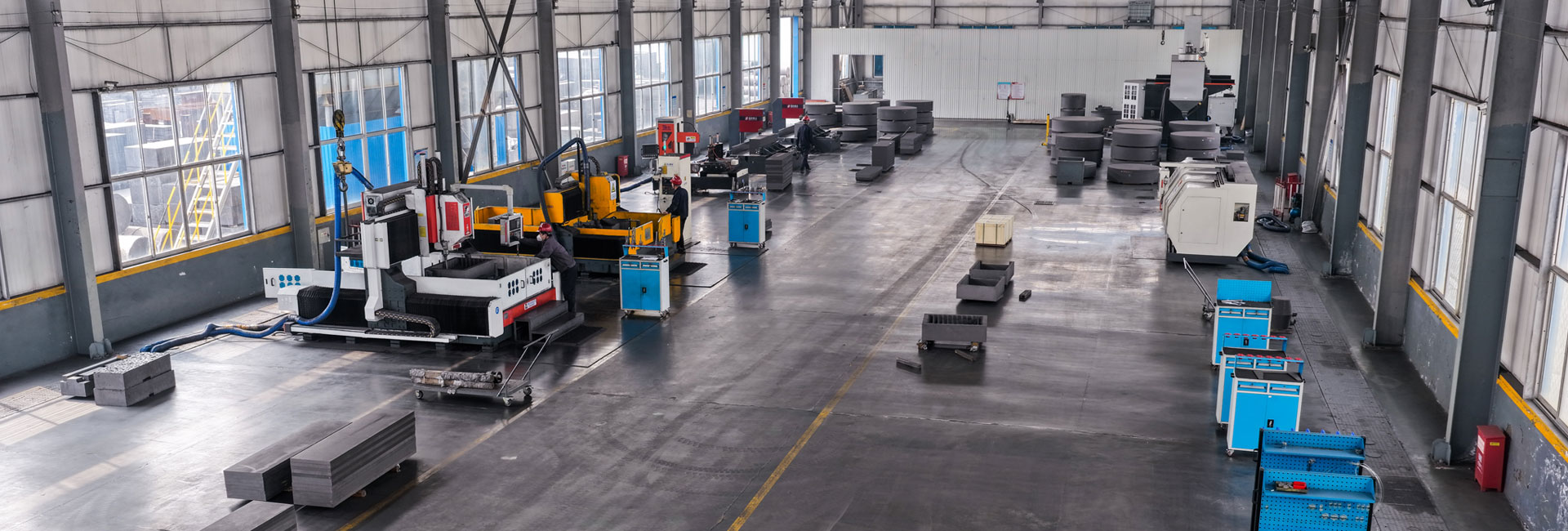

Our Plant
Location：Zhoucun District, Zibo City, Shandong Province,China
Established: 1991
Total No. of Employees: 989
Plant area: 294 acres
Capacity: 45000MT per year
Company Status
The largest national manufacturer and exporter of Graphite Electrode in Shandong province;
ISO9002 since 1997
ISO14000 since 2008
ISO9001 since 2009
ISO18000 since 2013
Product Range
Graphite Electrode: HP&UHP 300mm-600mm; RP 600/700mm
Physical and Chemical Index of Electrode
Item | Unit | RP | HP | UHP | |||||||||
300-500mm | 550-800mm | 300-500mm | 550-700mm | 300-500mm | 550-600mm | 700-800mm | |||||||
Electric Resistivity | Electrode | μΩ·m | 7.5-8.6 | 7.5-8.8 | 5.5-6.8 | 5.5-7.0 | 4.6-6.2 | 4.5-6.0 | 4.5-5.8 | ||||
Nipple | 4.5-6.0 | 4.0-5.5 | 3.5-5.0 | 3.4-4.5 | 3.3-4.3 | ||||||||
Bending Strength | Electrode | Mpa | ≥7.5 | ≥6.5 | ≥10.0 | ≥8.5 | ≥10.5 | ≥10.0 | ≥10.0 | ||||
Nipple | ≥16.0 | ≥18.0 | ≥20.0 | ≥22.0 | ≥23.0 | ||||||||
Elastic Modulus | Electrode | Gpa | ≤9.0 | ≤13.0 | ≤14.0 | ||||||||
Nipple | ≤13.0 | ≤15.0 | ≤22.0 | ≤22.0 | |||||||||
Bulk Density | Electrode | g/cm3 | 1.54-1.62 | 1.62-1.70 | 1.66-1.73 | 1.68-1.74 | |||||||
Nipple | 1.70-1.78 | 1.72-1.80 | 1.75-1.82 | 1.78-1.85 | |||||||||
Ash | Electrode | % | ≤0.3 | ||||||||||
Nipple | |||||||||||||
CTE (100-600)℃ | Electrode | 10-6/°C | 2.2-2.6 | 1.8-2.2 | 1.2-1.5 | 1.1-1.5 | |||||||
Nipple | 1.5-1.9 | 1.5-1.8 | 1.1-1.4 | 1.0-1.3 | |||||||||
Operating instruction
1. Use special hoist tools to hoist graphite electrode. It is strictly forbad to prize electrode ends up with crowbar. It must be handled with great care during transport to avoid being struck.
2. Graphite electrode must be kept away from being moistened or wetted by rain, snow and water, and must be kept dry.
3. Carefully checking before making connection, make sure that socket and nipple thread is not damaged, nipple pitch plug is in.
4. Blow the nipple and socket threads with compressed air.
5. It must be dried in the furnace before use, the drying temperature in the furnace should be less than 150℃,the drying period should be more 30 hours
6. Graphite electrode must be connected and contacted closely and straightly.Use moment spanner for connecting electrode with suitable force. Mustn’t decline.
7. The holding device must hold the electrode tightly, good contact and no arc.
8. To avoid the electrode breakage, put the large materials in lower part and small materials in the upper part. Insulating materials should not be put into the furnace. The working current of electrode must be conformity with the allowable current of electrode in the instructions.
