Smelting metal graphite crucible




Product Application Description

Graphite Crucibles are widely used in melting gold, silver and other precious metals or rare metals.


Advantages of Graphite Crucible

High temperature resistance
Perfect thermal resistance property

Low electric resistance

High precise machining

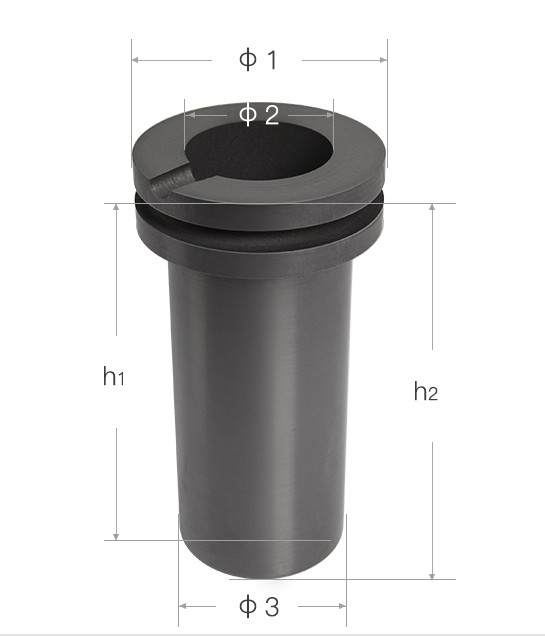

The Dimensions of 1-4kg double ring graphite crucible

Capacity

Φ1(mm)

Φ2(mm)

Φ3(mm)

H1(mm)

H2(mm)

Double ring graphite crucible

1kg

65

38

50

115

125

Double ring graphite crucible

2kg

72

44

55

140

155

Double ring graphite crucible

3kg

75

50

60

150

170

Double ring graphite crucible

4kg

88

52

68

160

180

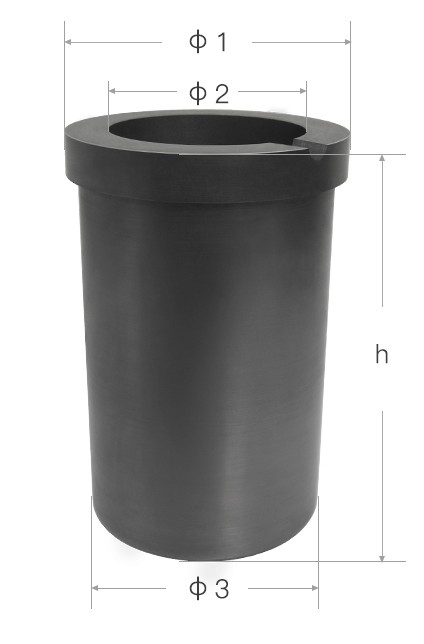

The Dimensions of 1-16kg graphite crucible

Capacity

Φ1(mm)

Φ2(mm)

Φ3(mm)

H(mm)

Graphite crucible

1kg

58

35

47

88

Quartz crucible

1kg

70

51

60

89

Graphite crucible

2kg

65

44

57

110

Quartz crucible

2kg

84

61

70

112

Graphite crucible

2.5kg

65

44

57

126

Quartz crucible

2.5kg

84

61

71

127

Graphite crucible

3kg

85

60

75

105

Quartz crucible

3kg

97

79

89

103

Graphite crucible

4kg

85

60

76

131

Quartz crucible

4kg

100

80

90

132

Graphite crucible

5kg

100

69

88

131

Quartz crucible

5kg

118

92

102

135

Graphite crucible

5.5kg

105

70

90

156

Quartz crucible

5.5kg

122

94

107

155

Graphite crucible

6kg

115

79

97

178

Quartz crucible

6kg

127

100

113

178

Graphite crucible

8kg

120

84

110

181

Quartz crucible

8kg

143

112

132

182

Graphite crucible

12kg

150

96

126

210

Quartz crucible

12kg

158

131

150

205

Graphite crucible

16kg

160

110

138

220

Quartz crucible

16kg

175

145

162

212
